Home / TV Solutions / Motion Mounts / ERMML6-01B

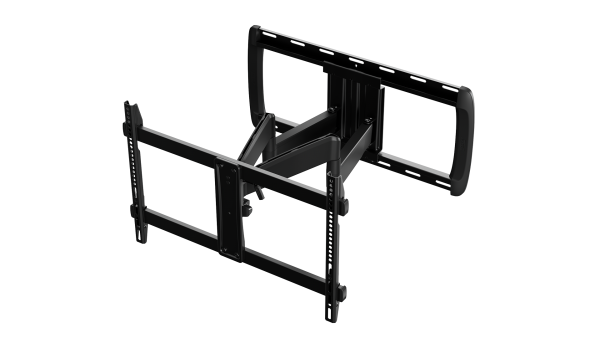

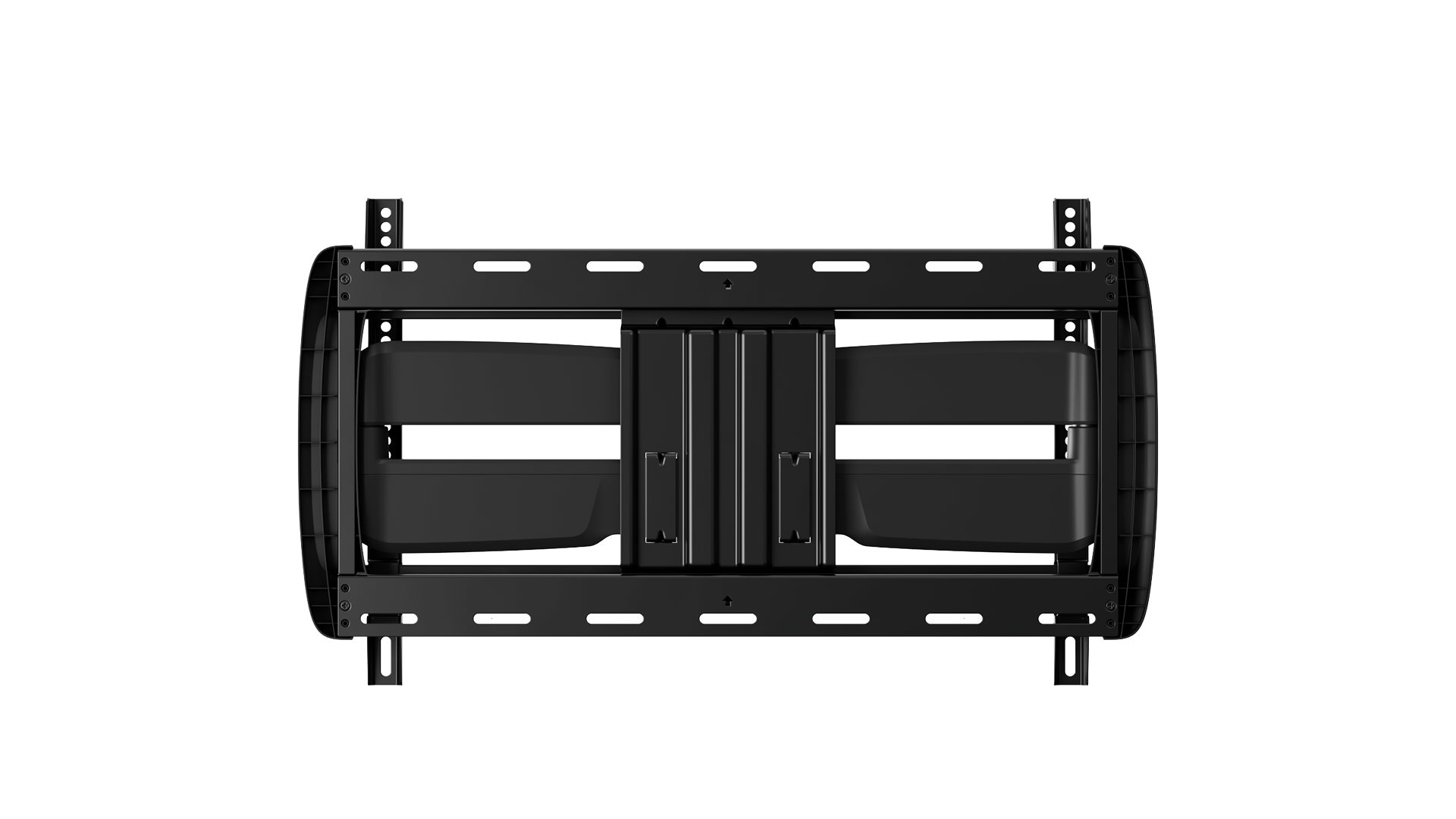

Large Motion TV Mount 42″-90″ TVs

The ERMML6-01B full motion mount fits most 42″ to 90″ TVs up to 132 lbs. Enhanced movement provides up to a 15-degree tilt and a 45-degree swivel for the best viewing angle. This mount can extend up to 24” and has a profile of 3”. Level adjustment allows the TV to be properly leveled after installation. Horizontal shift allows the TV to be moved horizontally on the wall plate to allow optimal placement on the wall. Safety tested and UL certified. Integrated cable management helps to conceal unsightly power and HDMI cables.

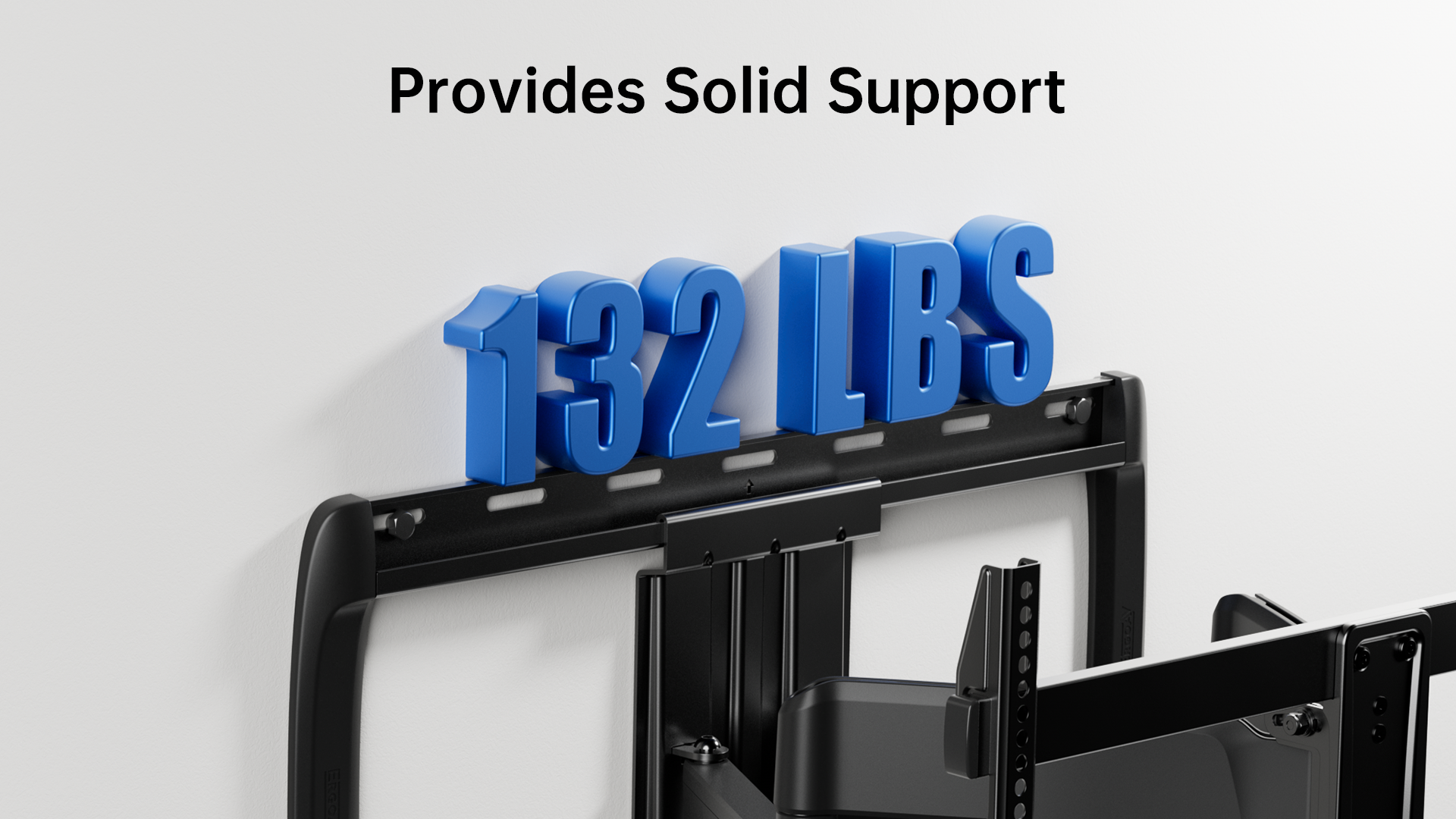

  • Fits most 42″ to 90″ TVs up to 132 lbs.

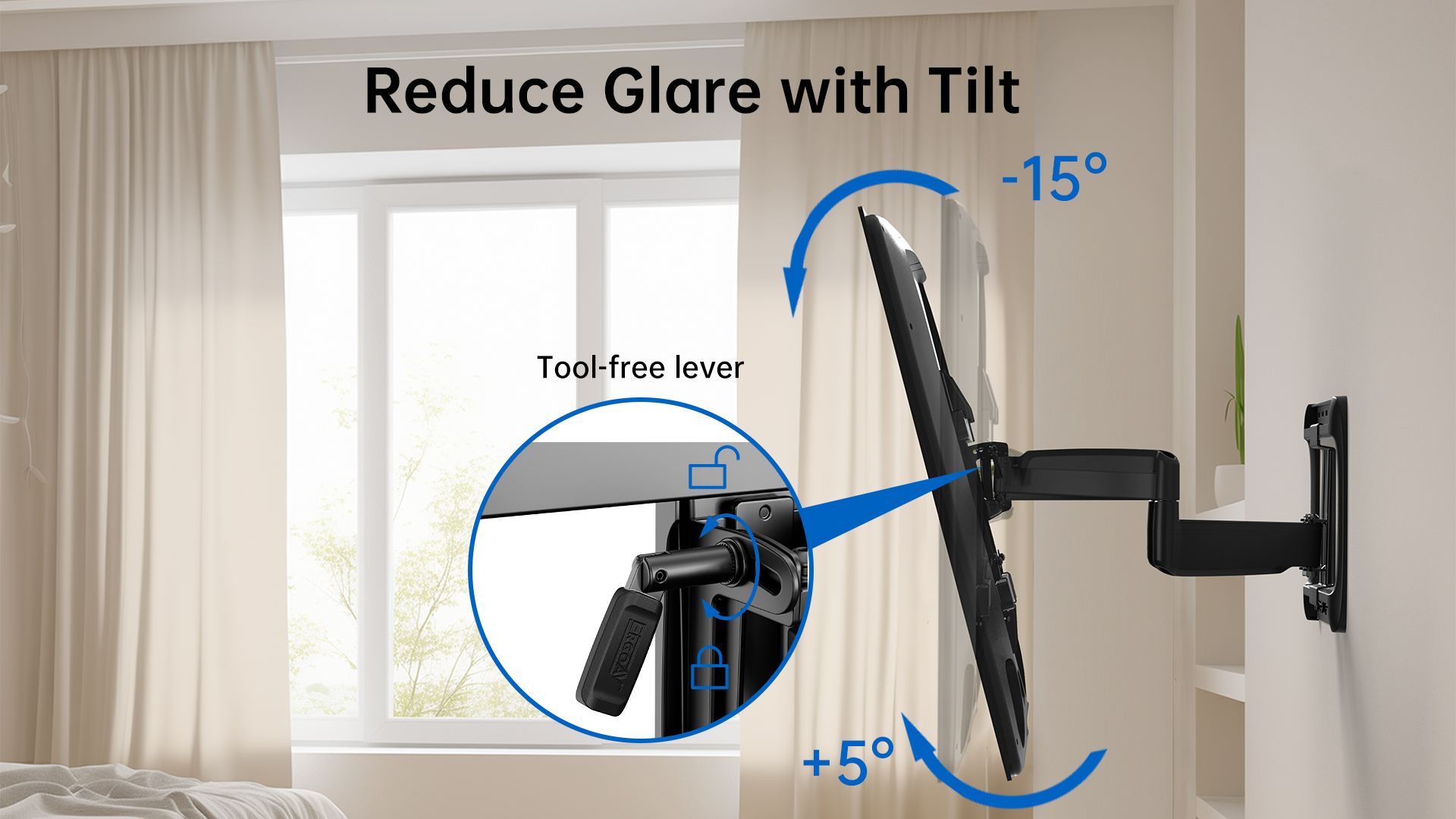

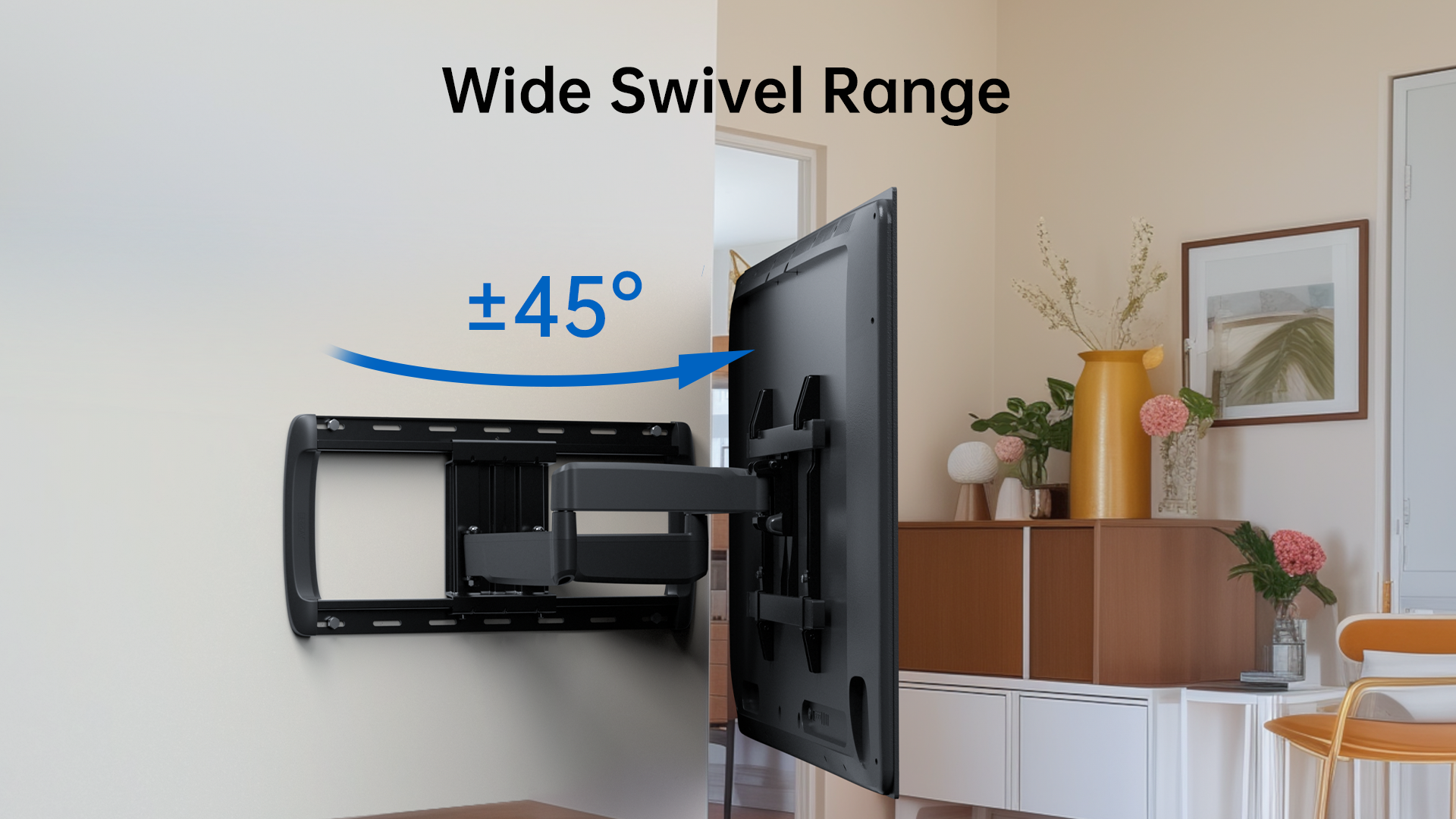

  • Enhanced movement provides up to a 15-degree tilt and a 45-degree swivel.

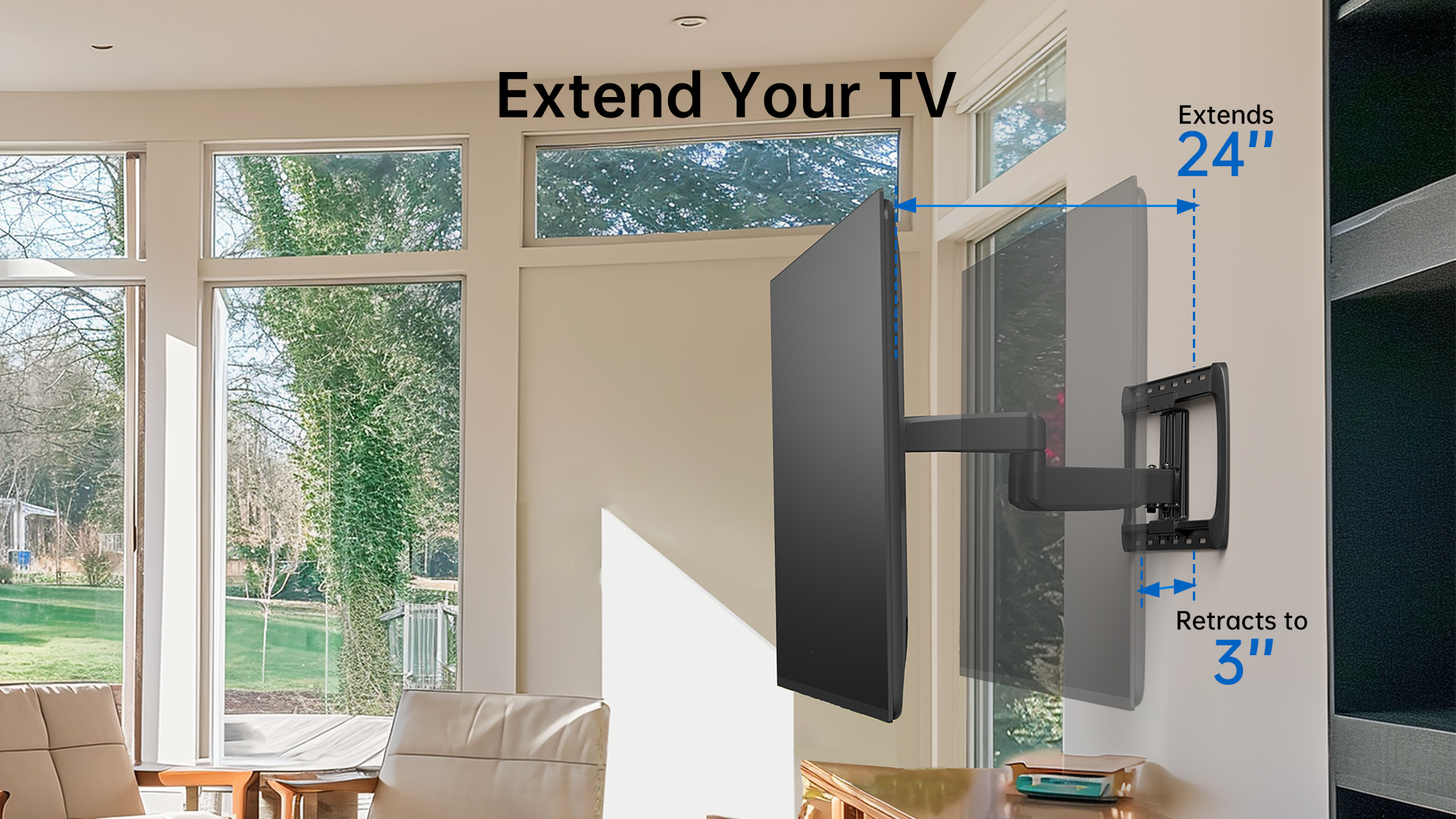

  • It extends up to 24” and has a profile of 3”.

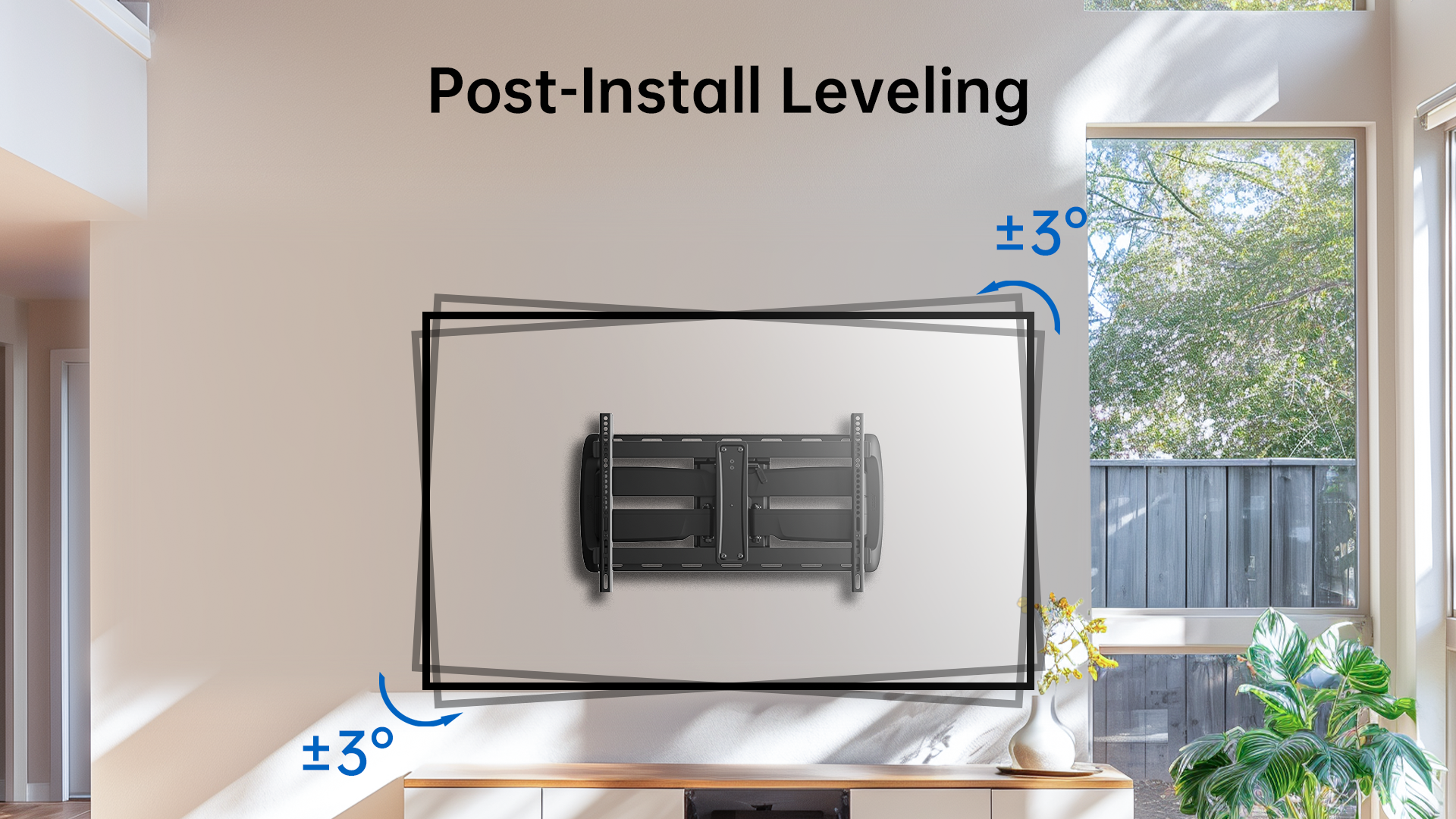

  • Level adjustment allows the TV to be properly leveled after installation.
  • Horizontal shift allows the TV to be moved horizontally on the wall plate to allow optimal placement

$229.99

  • Specifications
  • Downloads
  • Reviews
TV size range

42”-90”
Weight Capacity

132 lbs
Vesa Pattern

200×100 – 600 x 400
Tilt

+5°~ -15°
Swivel

±45°
Wall Supported

Wood Stud, Concrete，Block walls
Stud Spacing

16" & 24"
Level Adjust

±3°
Height Adjust

N/A
Cable Management

Yes
Certification

UL
Color

Black
Profile/Extension

3.0”-24”
ERMML6-01B-Manual
ERMML6-01 Tech-Drawing
ERMML6-01B Sell Sheet
